DCR20 Down The Hole Drill – Reliable and Proven Performance

The DCR20 is a proven and reliable resource for drilling operations around the world.

These drills have been tested in soft, medium and hard rock conditions with multiple end-users and applications providing deep holes from 3.5″ to 6.5″ at fast drilling rates with low maintenance.

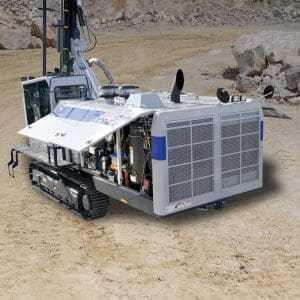

Servicing the DCR20 is easy.   There is access to all key components – such as the engine, fluid levels and compressor – through large panel doors located at ground level for maintenance when needed.

The redesigned cabs provide operators maximum comfort with single-lever drilling controls, large gauges and superior views of drilling operation.

Features & Benefits

DCR20 DTH Drill

DCR20 Down The Hole Drill Features & Benefits

  • Single-lever drilling control for easy operation
  • Large windows maximize operator visibility
  • High-visibility gauges allow operator to monitor machine functions while remaining focused on the drilling
  • Walk-around ground level maintenance provides fast, easy upkeep or repair
  • Rubber-mounted engine frame isolates cab from engine vibrations
  • AM/FM radio with bluetooth  is standard
  • Cab is equipped with USB port.
  • Combining performance and economy
  • Angle indicator for quick and easy drilling alignment
  • Drill hole diameter 3.5″ – 6.5″
  • Reliable dust control system increases suction capacity and provides effective pre-cleaner to reduce the escape of drilling dust
  • An optional dust suppression system is available for difficult drilling conditions
  • Advanced rotary pipe changer allows easy drill pipe changes
  • High-output compressor increases flushing air, provides faster drilling and decreases bit wear
  • Low-emission, Tier III Caterpillar engine offers low fuel consumption at 440hp and meets US exhaust emissions regulations
  • All compressor hoses are Teflon for strength and durability. Hoses and wiring are placed in a compact and efficient routing design for more protection, less wear and easy replacement
  • Drill pipe changer equipped with electronic sensors speeds pipe addition and extraction
  • Heavy-duty undercarriage with low center of gravity featuring a pentagonal section design to reduce dirt build-up and track wear ensures strength, durability and stability
Specifications

DCR20 Specifications

 DCR20
WEIGHT & DIMENSIONSUS StandardMetric
Overall weight46,200 lb21,000 kg
Overall length35'-0"10,645 mm
Overall width14'-2"4,330 mm
Overall width for transportation7'-9.6"2,400 mm
Overall height12'-5"3,800 mm
TRAVELING UNIT
Track length11'-9"3,570 mm
Ground contact length9'-5"2,865 mm
Track width1'-1"330 mm
Ground clearance1'-8"508 mm
Oscillating angle±7.5° deg
Traveling speed2.2 mph3.6 km/h
Grade ability25 deg
Max. traction force23,604 lb105 kN
DRILL MOTOR
Drill motor modelDowmax® / ME 350
Max. rotation torque2,397 lb-ft3,250 Nm
Max. rotation speed120 rpm
Drilling bit range3.5 - 6.5 in89 - 165 mm
ENGINE
ModelCAT C-13 meets Tier III and EU stage-3 Low-emission, low fuel consumption Tier III Caterpillar® engine meets major exhaust emissions regulations in Europe and US.
TypeTurbo-charged & air to air after cooled diesel, direct fuel injection,
electronic governor.
Output440 / 2,100 hp/rpm328 / 2,100 kW/min-1
Fuel tank capacity185 gal700 liter
HYDRAULIC PUMP
Main pumpTandem variable displacement pump
Dust collector pumpGear pump
Boom/Fan/Pilot line pumpGear pump
COMPRESSOR
ModelAirman® PDSK 900
TypeScrew, double stage, oil-cooled
Max. Air delivery363 psi2.5 MPa
Max. Free Air Delivery847 CFM24m3/min
BOOM
Boom swing angle30° R - 13° L deg
Boom lift angle49° UP - 14° Down deg
GUIDE SHELL
Length32'-7"9,964 mm
Feed distance18'-7"5,678 mm
Guide slide distance3'-11"1,200 mm
Guide swing angleL77°- R16° deg
Max. pulling force6,744 lb30 kN
Feed systemHydraulic motor
PIPE CAROUSEL
Number of pipes8
Pipe weight176 lb80 kg
Pipe length16'-5" / 13'-1"5,000 mm / 4,000 mm
Pipe diameter3", 3.5" and 4"76, 89 and 102 mm
Auto greaseAutomatic
DUST COLLECTOR
Suction air volume2,472 CFM70 m3/min
Air filter20 pcs.
Dust removal systemAir pulse jet
Suction capSliding
Inner diameter of dust hose6"150 mm
Pre-cleanerstandard
Dimensional Information

Drilling Coverage – Printable PDF

Front View – Printable PDF

End View – Printable PDF

Options

DCR20 Options

OPTIONAVAILABILITY
Water/dust suppression system
Remote control
Rod setter
Heavy-duty rear-mounted bumper
Cold start kit (ESPAR, WEBASTO)
2D angle indicator
3D angle indicator
Drill monitoring system with GPS capabilities
Heating pad
Handrails
Central greasing system
Tropical kit
Rear view camera
