Fx175 Qtv Large Series Hydraulic Breakers – Superior Reliability

This breaker is designed for use on excavators in the 13 to 22 ton range and FRD pedestal systems.

The Fx175 Qtv is ideal for roads, bridges, rock, utility applications, and in quarries. Incorporating the latest in design technology, the Fx175 Qtv hammer improves day-to-day performance, offering less maintenance and downtime, smoother operation, superior strength and the highest level of reliability.

No Thru-Bolts

The new Fx Series for excavators has eliminated a problem that has long plagued the breaker industry– thru-bolts. Our new large series of hydraulic hammers are designed without thru-bolts and all the problems that go with them.

Improved Performance

The Fx175 Qtv offers improved durability, with features that include a square, mono-block body design for superior strength. The elimination of thru-bolts also reduces maintenance and eliminates failure. A patent pending dust prevention system incorporates grooves to trap contaminates on the upstroke and expel them on the piston down stroke, while a cushion ring acts as a secondary trap. This improves the life of the piston, bushings and working steel.

Operators appreciate performance features that include a new valve design to reduce hydraulic fluid temperatures. A redesigned piston enhances surface contact to working steel, while a larger bushing surface keeps it aligned for greater impact. A replaceable cylinder liner increases tool life and reduces time-consuming maintenance.

The Fx175 Qtv is also designed to accommodate automatic lubrication systems for quick daily maintenance. Excavators equipped with quick couplers can take advantage of our Floating Top-Mount Boss mounting system. This incorporates standard mounting hardware while meeting “OEM Pin Centers” for specific carrier mounting eliminating the need for specific OEM top caps.

All hammers come complete with our exclusive Pro-Pak for ease of installation. The Pro-Pak includes hose whips, mounting hardware, standard working steel and tool kit with operating manual at no additional charge.

Features & Benefits
Fx175 breaking up concrete | Furukawa FRD

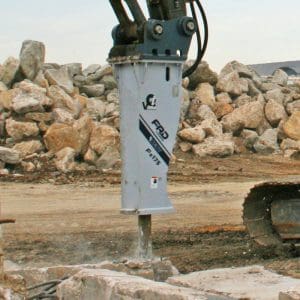

Fx175 Qtv Hydraulic Breaker

Fx175 Qtv Medium Features & Benefits

  • Designed without Thru-Bolts
  • Increased hydraulic flow range for use on a wider range of carriers
  • Mono-block design eliminates a separate cylinder, front-head and thru-bolts
  • Improved Dust Intake Prevention system increases reliability
  • Replaceable cylinder liner with concentric porting keeps piston aligned for maximum impact performance
  • Improved valve design reduces hydraulic fluid temperature which increases performance
  • Square body design for superior strength
  • 3-point sealing system prevents internal contamination
  • Redesigned piston increases surface contact to working steel
  • Improved dampening system keeps the breaker properly secure in cradle to reduce wear
  • Qtv cradle for improved protection, sound suppression and dampening
  • Increased and improved lubrication to critical components
  • Longer thrust bushing for increased internal alignment also insures direct impact with piston
  • Includes two-year warranty with registration
Specifications

Fx175 Specifications

 Fx175 Qtv
Impact energy class3,250 ft. lbs.
*Total Weight in Lbs (kg)2,095 (1,402)
*Total Length in Inches (mm)100 (2,540)
WORKING STEEL
Diameter in Inches (mm)4.72 (120)
New Length of Steel Measured from Front Face in Inches (mm)27.36 (695)
Replaceable Steel Length, Measured from Front Face in Inches (mm)16.14 (410)
GENERAL SPECIFICATIONS
Adjustable Blows Per Minute (BPM)450 ~ 600
Acceptable GPM Range (LPM)26 ~ 42 (98 ~ 158)
Acceptable PSI Range (Bar)2,320 ~ 2,610 (160 ~ 180)
85 dB(A) @~ 13 meters
Recommended Carrier Range in U.S. Tons (tonnes)13 ~ 22 (12 ~ 20)
Carrier Options




The contents of these specifications are subject to change without notice.

*Note: Total weight and total length include standard working steel and universal top cap less mounting pins and bushings.
Fx Large Series Cut-Away

Fx Large Series Cut-Away

  • New valve design reduces hydraulic fluid temperatures to increase performance
  • Redesigned piston increases surface contact to working steel
  • Advanced lubrication system evenly distributes grease to thrust bushing, front bushing and rod pins
  • Higher backhead pressure for improved performance
  • Square body, mono-block design for superior strength, eliminates a separate cylinder, fronthead and through-bolts
  • Replaceable cylinder liner with concentric cylinder porting keeps piston aligned for maximum impact performance
  • 3-point Patent Pending dust intake prevention system incorporates grooves to trap contaminates on the upstroke and expel them on the piston down stroke, cushion ring acts as a secondary trap, improved external sealing minimizes dust intake
  • Increased bushing surface keeps working steel aligned for greater impact and is replaceable without disassembly

Select to expand cut-away.
