Fx275 Qtv Large Series Hydraulic Breakers – Bigger, Better, Bolder

The most popular in the Fx large series line-up, the Fx275 Qtv is made for excavators in the 21 to 33 ton range, and is a brute among hammers.

Built to take punishment, the Fx275 Qtv hammer can handle road removal, reduction of bridge pylons, foundation demolition, and the extremes of quarry applications. Incorporating the latest in design technology, it also offers less maintenance and downtime and smoother operation.

No Thru-Bolts

The new Fx Series for excavators has eliminated a problem that has long plagued the breaker industry–Thru-Bolts. Our new large series of hydraulic hammers are designed without Thru-Bolts and all the problems that go with them.

New Innovative Design

The new square mono-block body design eliminates thru-bolts increasing durability and reducing maintenance and failure due to broken bolts. An increased hydraulic flow range allows the hammer to be used on a wider range of carriers for greater inventory utilization.

Improved Performance

Operators appreciate performance features that include a new valve design to reduce hydraulic fluid temperatures. A redesigned piston enhances surface contact to working steel, while a larger bushing surface keeps it aligned for greater impact. A replaceable cylinder liner increases tool life and reduces time-consuming maintenance. A higher back head pressure and large piston diameter increase the impact energy by up to 20-30% over previous models. The one-piece enclosure reduces noise levels making it a perfect choice for reduced noise applications.

All FRD USA hammers come complete with our exclusive Pro-Pak for ease of installation. The Pro-Pak includes hose whips, mounting hardware, standard working steel and tool kit with operating manual at no additional charge.

Features & Benefits

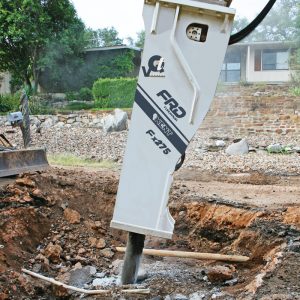

Fx275 Qtv at a demolition site | Furukawa FRD

Fx275 Qtv Hydraulic Breaker

Fx275 Qtv Features & Benefits

  • Designed without Thru-Bolts
  • Increased hydraulic flow range for use on a wider range of carriers
  • Mono-block design eliminates a separate cylinder, front-head and thru-bolts
  • Improved Dust Intake Prevention system increases reliability
  • Replaceable cylinder liner with concentric porting keeps piston aligned for maximum impact performance
  • Improved valve design reduces hydraulic fluid temperature which increases performance
  • Square body design for superior strength
  • 3-point sealing system prevents internal contamination
  • Redesigned piston increases surface contact to working steel
  • Improved dampening system keeps the breaker properly secure in cradle to reduce wear
  • Qtv cradle for improved protection, sound suppression and dampening
  • Increased and improved lubrication to critical components
  • Longer thrust bushing for increased internal alignment also insures direct impact with piston
  • Includes two-year warranty with registration
Specifications

Fx275 Qtv Specifications

 Fx275 Qtv
Impact energy class5,250 ft. lbs.
*Total Weight in Lbs (kg)3,758 (1,705)
*Total Length in Inches (mm)119 (3,026)
WORKING STEEL
Diameter in Inches (mm)5.51 (140)
New Length of Steel Measured from Front Face in Inches (mm)30.3 (770)
Replaceable Steel Length, Measured from Front Face in Inches (mm)17.72 (450)
GENERAL SPECIFICATIONS
Adjustable Blows Per Minute (BPM)350 ~ 550
Acceptable GPM Range (LPM)38 ~ 58 (144 ~ 220)
Acceptable PSI Range (Bar)2,320 ~ 2,610 (160 ~ 180)
85 dB(A) @~ 14 meters
Recommended Carrier Range in U.S. Tons (tonnes)21 ~ 33 (19 ~ 30)
Carrier Options


The contents of these specifications are subject to change without notice.

*Note: Total weight and total length include standard working steel and universal top cap less mounting pins and bushings.
Fx Large Series Cut-Away

Fx Large Series Cut-Away

  • New valve design reduces hydraulic fluid temperatures to increase performance
  • Redesigned piston increases surface contact to working steel Advanced lubrication system evenly distributes grease to thrust bushing, front bushing and rod pins
  • Higher backhead pressure for improved performance
  • Square body, mono-block design for superior strength, eliminates a separate cylinder, fronthead and through-bolts
  • Replaceable cylinder liner with concentric cylinder porting keeps piston aligned for maximum impact performance
  • 3-point Patent Pending dust intake prevention system incorporates grooves to trap contaminates on the upstroke and expel them on the piston down stroke, cushion ring acts as a secondary trap, improved external sealing minimizes dust intake
  • Increased bushing surface keeps working steel aligned for greater impact and is replaceable without disassembly

Select to expand cut-away.
