Fx45a/55a Rock Breaker Attachments Provide Versatility and Performance

The dependable Fx 45a/55a breakers are available in a variety of mounting configurations, enabling them to be easily attached to mini-excavators, skid-steer loaders and rubber-tired backhoes.

Performance features and mounting options make these breakers ideal for site preparation, foundation removal, road repair, driveway and sidewalks or pedestrian bridges.

The unique mono-block design is a result of years of engineering refinement and field experience. Two moving parts simplifies the hammer operation and reduces the chance of downtime. The advanced hydraulic circuit provides increased flow to the valve and piston, resulting in faster cycle times, increased tool penetration and more productivity per hour than on previous models. There are no Through-bolts to constantly torque or replace and the front wear bushing is easily replaced so your hammer is always in perfect working condition. The wider oil flow range is an example of the hammers superior design, allowing for faster striking speeds and the ability to be used on a wider range of carriers. The nitrogen charged back-head increases the impact energy maximizing hammer production.

In the rare event that maintenance is needed, the Fxa Series has been designed with replaceable cylinder liners saving maintenance cost and downtime.

Features & Benefits

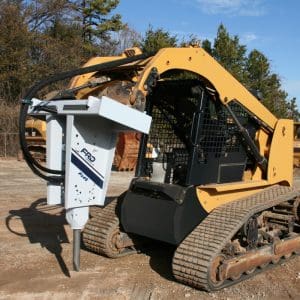

FX45a at job site | Furukawa FRD

Fx45a Hydraulic Breaker

Fx45a/55a Features & Benefits

  • Mono-block design with only two moving parts reduces maintenance
  • No Through-bolts to maintain
  • No Diaphragm to replace
  • Replaceable front wear bushing keeps tools in peak performance
  • Wide oil flow range for fast, hard-hitting performance and more carrier options
  • A variety of mounting options that can accommodate any carrier or application
  • A wide variety of working steels
  • Long front head bushing keeps steel in proper alignment for maximum service life
  • Oval retaining pin for increased steel contact and double service life
  • Includes two-year warranty with registration
Specifications

Fx45a/55a Specifications

 Fx45aFx55a
Impact Energy Class550 ft lb800 ft lb
WEIGHT IN LBS (KG)*
SS configuration784 (356)840 (381)
FSP configuration**606 (275)714 (324)
Qt configuration**550 (250)720 (327)
LENGTH IN INCHES (MM)*
SS configuration57.5 (1461)61 (1549)
FSP configuration**54 (1372)60 (1524)
Qt configuration**52.75 (1340)57.5 (1461)
WORKING STEEL***
Diameter in inches (mm)2.36 (60)2.68 (68)
Replaceable length measured from fronthead in inches (mm)9.5 (240)10 (250)
GENERAL SPECIFICATIONS
Blows per minute (variable)600 ~ 1100500 ~ 1000
Oil flow range gpm (lpm)7.9 ~ 15.8 (30 ~ 60)10.5 ~ 22.5 (40 ~ 85)
Operating pressure psi (MPa)1,740 ~ 2,320 (12 ~ 16)1,740 ~ 2,320 (12 ~ 16)
Qt configuration; 85 dB(A) @7.5m8.0m
Recommended Carrier
Range in U.S. tons
2.75 ~ 6.14.4 ~ 7.7
Carrier options












The contents of these specifications are subject to change without notice.

Notes:
* Weights and lengths for all configurations include standard Working Steel (less mounting & Hose Whips)
** Weights and lengths for FSP’s & Qt’s include a Universal Top Cap (less mounting & Hose Whips)
*** All working steels are interchangeable with the previous F-Series and Fx-Series
Configurations
MODEL CONFIGURATIONS

Fx45a

Fx55a


Description of Configurations
FB
Breaker assembled in full length side plates & includes; (2) hose whips, all mounting and (1) standard working steel (moil or chisel or blunt)
CP
Breaker assembled in full length, 1-piece CP072 bracket & includes; (2) hose whips and (1) standard working steel (moil or chisel or blunt)
CP-QA
Breaker assembled in full length, 1-piece CP072 bracket & includes; (1) Quick-Attach brkt, (2) hose whips, and (1) st’d working st’l (moil or chisel or blunt)
ME
Breaker assembled in full length side plates expressly for mini-exc. & includes; (2) hose whips, all mtg and (1) st’d working st’l (moil or chisel or blunt)
FSP
Breaker assembled in full length, flanged side plates & includes; a top cap, all mounting, (2) hose whips and (1) st’d working st’l (moil or chisel or blunt)
WB
Breaker assembled in full length side plates expressly for Weldco-Beals coupler & includes; (2) hose whips and (1) st’d working st’l (moil or chisel or blunt)
SS
Breaker assembled in a 1-piece, HD skid-steer quick-attach bracket & includes; (2) hose whips and (1) standard working st’l (moil or chisel or blunt)
QT
Breaker assembled in a full length and protective, low noise case & includes: top cap, mounting, hose whips & (1) st’d working st’l
Fx Series Cut-Away

Fx Small Series Cut-Away

  • Mono-block design with only two moving parts reduces maintenance.
  • No Through-bolts to maintain.
  • No Diaphragm to replace.
  • Replaceable front wear bushing keeps tools in peak performance.
  • Wide oil flow range for fast, hard-hitting performance and more carrier options.
  • A variety of mounting options that can accommodate any carrier or application.
  • Accommodates a wide variety of working steels.

Select to expand cut-away.
