Fx770 Qtv Large Series Hydraulic Breakers – A Brute That Can Move Mountains

The new, 12,000 Lb Class Fx770 Qtv breaker replaces the popular F70 Qt, and offers unique features and proven design improvements.

Even though it requires the same pressure and flow than its predecessor, the Fx770 is designed to produce increased impact as a result of a significant increase in backhead pressure. It is also able to work on a wider range of carriers (48.5-ton to 83-ton).

This breaker is the perfect choice for working in quarries, breaking hard rock or taking on large demolition jobs. Several improvements to the through bolts increase durability, while a replaceable cylinder liner with concentric porting increases tool life. An anti-idle blow feature increases durability and performance. There is a coating applied to the breaker’s cylinder liner and valve, which reduces time-consuming maintenance and greatly increases the level of reliability.

Features & Benefits

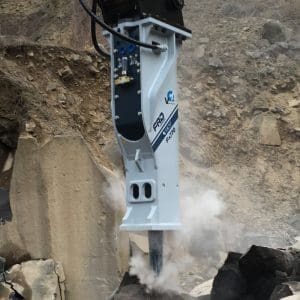

Fx770 Qtv Hydraulic Breaker

Fx770 Qtv Features & Benefits

  • Increased carrier range (48.5 to 83 ton) over its predecessor, the F70 Qt (48.5 to 77 ton), allowing use on a wider range of carriers

  • Larger diameter working steel (7.48″) over the F70 Qt (7.09″)

  • Higher backhead pressure increases impact by 10% over the F70 Qt even though both operate with the same pressure and flow

  • Replaceable cylinder liner with concentric porting keeps piston aligned for maximum impact performance

  • Scratch-resistant phosphate coating applied to both valve and cylinder liner improves service life of both components; minimizes opportunity of minor galling

  • Design improvements to the through bolts, including larger thread diameters, can increase durability by 20%

  • Includes two-year warranty with registration
Specifications

Fx770 Qtv Specifications

 Fx770 Qtv
Impact Energy Class12,000 ft. lbs.
*Total Weight in Lbs (kg)10,742 (4,872)
*Total Length in Inches (mm)155.7 (3,955)
WORKING STEEL
Diameter in inches (mm)7.48 (190)
New length measured from fronthead in inches (mm)33.85 (860)
Replaceable length measured from fronthead in inches (mm)21.25 (540)
GENERAL SPECIFICATIONS
Adjustable BPM250 ~ 330
Acceptable GPM Range (LPM)66 ~ 90 (250 ~ 340)
Acceptable PSI Range (Bar)2,320 ~ 2,610 (160 ~ 180)
85 dB(A) @17 - meters
Recommended Carrier
in U.S. Tons
48.5 ~ 83 (44 ~ 75)
Carrier options


*Note: Total weight and total length include standard working steel and universal top cap less mounting pins and bushings.
Fx Large Series Cut-Away

F Large Series Cut-Away

  • Shuttle valve
  • Side mount nitrogen charged accumulator
  • Replaceable thrust bushing
  • Two retaining pins for greater alignment with working steel
  • Replaceable front head bushing
  • Large diameter through bolts with “CD” threads
  • Nitrogen charged back head. Large diameter piston

Select to expand cut-away.
