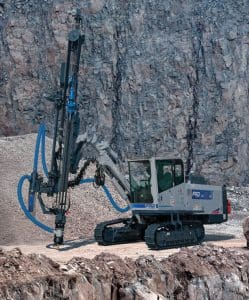

HCR1100-ED Rock Drill –
The perfect drill for quarries or construction sites.

The HCR1100-ED with extendable boom incorporates a self-adjusting drill system that ensures high productivity no matter what the drilling situation.

Low emission, Tier-IV Cummins® engine meets strict North American exhaust emissions regulations.

The Furukawa HD818 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing percussion frequency by 24% versus the HD709 drifter, its predecessor.

Duel dampening system stabilizes the bit against the rock, ensuring efficient energy transfer and straighter holes. The system automatically adjusts the drifter for maximum performance regardless of the rock condition.

Features & Benefits

HCR1100-ED Tier-IV Rock Drill

HCR1100-ED Features & Benefits

  • Rod changer with proven design allows for the install of five drill steels plus one 13′ starter rod.
  • Heavy-duty undercarriage – featuring a pentagonal section design to reduce dirt build-up and track wear – ensures strength and durability.
  • High-output compressor provides faster drilling and decreases bit wear.
  • Reliable dust control system provides effective pre-cleaner to reduce escape of drilling dust.
  • Single-lever drilling control for easy operation.
  • Walk-around ground level maintenance provides fast, easy upkeep or repair.
Specifications

HCR1100-ED Specifications

 HCR1100 ED
WEIGHT & DIMENSIONSUS StandardMetric
Operating Weight with Fuel/Oil28,991 lbs.13,150 kg.
Overall Length390"9,910 mm
Overall Width129.7"3,295 mm
Overall Height
131.8"3,350 mm
DRIFTER
ModelHD 818
Weight445 lbs.202 kg.
Number of Blows2,800 ~ 3,400 bpm2,800 ~ 3,400 min-1
Number of Revolutions0 ~ 200 rpm0 ~ 200 min-1
UNDERCARRIAGE
Track Length
124"3,159 mm
Track Length on Ground94"2,395 mm
Track Width12.9"330 mm
Ground Clearance23"585 mm
Frame Oscillation Angle
± 7.6°
Tramming Speed0 to 2.17 mph 0 ~ 3.5 km/h
Gradeability57.7% (30°)
ENGINE
Make & ModelCummins® QSB6.7
TypeDiesel Water-cooled, 6 Cylinders
Power Output226 HP/2200 rpm168 kW/2200 min-1
Fuel Capacity84 US Gal320 L
HYDRAULIC EQUIPMENT
Variable Displacement PV PumpPV Pump x 2
Fixed Displacement PumpGear Pump x 3
Hydraulic Oil Reservoir Capacity45 US Gal170 L
BOOM
ModelJE326
TypeExtension Boom
Boom Lift AngleUp 45°, Down 15°
Boom Swing AngleRight 30°, Left 4°
Boom Slide Length3' 11"1,200 mm
GUIDE SHELL
ModelGH831
Length25' 7"7,845 mm
Feed Length15' 4"4,704 mm
Guide Slide Length3' 11"1,200 mm
Guide Swing AngleRight 30°, Left 90°
Guilde Tilt Angle180°
Max. Rod Pull-out Force5,507.8 lb-force24.5 kN
Feed TypeHydraulically Operated Chain Driven
COMPRESSOR
ModelAirman® PDS265-S37B
Type1 Stage Screw Compressor
Free Air Delivery215 cfm6.1 m3/min
Discharge Pressure149 psi1.03 Mpa
DUST COLLECTOR
Suction Capacity706 cfm20 m3/min
Number of Filter Element4
BITS AND RODS
Rod Length10' or 12'3,050 mm or 3,660 mm
Bit Range2.5" to 3.5"64 ~ 89 mm
Rod Diameter32H, 38R, 45R, (38H)
Max. Starter Rod Length13'4,000 mm
Number of Storage in Rod Changer5
OPERATING ENVIRONMENT
Ambient Temperature Range5° to 113° F-15 °C ~ +45 °C
Maximum Altitude9,842 ft.Max. 3,000 m
The contents of these specifications are subject to change without notice.
CUMMINS is a registered trademark of Cummins, Inc.
AIRMAN is a registered trademark of HOKUETSU INDUSTRIES CO., LTD.
Dimensional Information

Drilling Coverage – Printable PDF

Front View – Printable PDF

End View – Printable PDF

Options

HCR1100-ED Options

OPTIONAVAILABILITY
Water/dust suppression system
Remote control
Rod setter
Heavy-duty rear-mounted bumper
Cold start kit (ESPAR, WEBASTO)
2D angle indicator
3D angle indicator
Drill monitoring system with GPS capabilities
Heating pad
Handrails
Central greasing system
Tropical kit
Rear view camera
