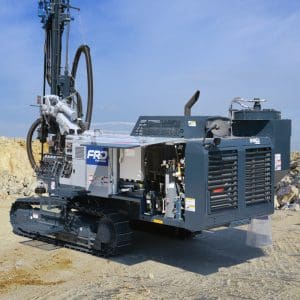

HCR1100-ER Rock Drill – Better Penetration with Increased Impact

The HCR1100-ER drill incorporates innovative features for higher output and is capable of drilling at larger diameters.

Utilizing a Cummins® Tier-IV EPA compliant engine, the HCR1100-ER combines higher performance with fuel efficiency.

The Furukawa HD822 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing performance. With 26.7% more impact and 13% more airflow than its predecessor, this drill has the ability to perform in harder rock at a larger diameter.

Features & Benefits

HCR1100 ER Top Hammer Drill

HCR1100-ER Features & Benefits

  • The improved electro-hydraulics allow easier operation
  • With FRD’s TFSS (total fuel savings system), the operator selects the optimum engine speed for the application, allowing all fuel savings functions to be automatically managed during drilling operation
  • The monitoring system incorporates gauges next to the drilling station, allowing the operator a quick visual of engine temperature, hydraulic oil temperature and fluid levels
  • Automatic rod changer to eliminate the need for operators to manually install drill steel, resulting in increased production and enhanced operator safety.
  • Upgraded compressor increases free air delivery by nearly 28% to accommodate larger diameter drilling
  • Winch-ready frame adds application versatility
  • Optional wireless remote allows tramming and drilling from a secondary location
Specifications

HCR1100-ER Specifications

 HCR1100 ER
WEIGHT & DIMENSIONSUS StandardMetric
Operating Weight with Fuel/Oil27,500 lbs.12,460 kg.
Travel Speed0 to 2 mph0 to 3.2 km/h
Maximum Traction Force19,700 lb-force88 kN
Maximum Grade of Hill Climb57.7% (30°)
Oscillating Angle±7.6°
Ground Clearance23"585 mm
Ground Contact Pressure *311.2 psi77.3 kPa
DRIFTER
ModelHD 822
Operating Weight533 lbs.242 kg.
Power29.5 HP22 kw
Overall Length44.5"1,130 mm
Overall Width14.7"373 mm
Overall Depth12.9"328 mm
Number of Blows2,700 to 3,300 bpm
Number of Revolutions190 rpm190 min-1
ENGINE
Make & ModelCummins® QSB6.7
TypeWater Cooled, 6-Cylinder Diesel Engine
Rated Output226 HP/2,200 rpm168 Kw/2,200 min-1
Emission ControlTier-IV Final
HYDRAULIC EQUIPMENT
Variable Displacement PumpAxial Piston Pump X2
Fixed Displacement PumpGear Pump X3
Drive MotorHydraulic Motor with Reduction Gear
BOOM
ModelJE326
TypeExtension Boom
Boom Lifting Angle: Up/Down45°/15°
Boom Swing Angle: Right/Left30°/30°
Boom Slide Length3' 11"1,200 mm
GUIDE SHELL
ModelGH831
Overall Length26' 0"7,925 mm
Feed Length15' 8"4,781 mm
Guide Slide Length3' 11"1,200 mm
Guide Swing Angle: Right/Left30°/90°
Guide Tilt Angle180°
Maximum Pulling Force7,060 lb-force31.4 kN
Feed SystemMotor Chain
COMPRESSOR
Make & ModelAIRMAN PDS265-S37C
TypeScrew 1-Stage
Discharge Airflow275 cfm7.8 m3/min
Discharge Pressure149 psi1.03 Mpa
DUST COLLECTOR
ModelA844
Airflow918 cfm26 m3/min
Number of Elements5
Dust Removal SystemAutomatic Pulse Air Jet
Suction CapSlide Type
ROD CHANGER
Number of Rods5
Rod Length T38 - T4510' / 12'3.05mm / 3.66mm
ELECTRICAL EQUIPMENT
Battery12 Volt; 108Ah/5Hr
VoltageDC 24V
FUEL/OIL CAPACITY
Fuel Tank84 US Gal320 L
Hydraulic Tank45 US Gal170 L
DEF Tank *45 US Gal19L
BIT AND ROD
Bit Diameter2.5" to 4"64 mm to 102 mm
Rod SizeT38 T45
Rod Length10' or 12'3,050 or 3,660 mm
First Rod Length Maximum13'4,000 mm
TEMPERATURE
Operating Temperature5° to 113° F−15° to +45° C
The contents of these specifications are subject to change without notice.
Dimensional Information

Drilling Coverage – Printable PDF



Front View – Printable PDF

End View – Printable PDF

Options

HCR1100-ER Options

OPTIONAVAILABILITY
Water/dust suppression system
Remote control
Rod setter
Heavy-duty rear-mounted bumper
Cold start kit (ESPAR, WEBASTO)
2D angle indicator
3D angle indicator
Drill monitoring system with GPS capabilities
Heating pad
Handrails
Central greasing system
Tropical kit
Rear view camera
