HydraPak – HP135 II and HP 210 II Plate Compactors – Higher Frequency and Higher Impact Power

Compactor/drivers combine high frequency vibration with high impact power to make quick work of any compaction or driving task.

Designed for use on medium and large excavators, these compactors are designed to work anywhere a boom can reach in trenches, around foundations, on slopes or seawalls. Hydra-Paks can safely compact trenches, often eliminating the extra cost involved with a man and walk-behind unit and the added expense of trench boxes or shoring. The Hydra-Paks are also ideal for driving steel sheeting used for retaining walls.

Furukawa compactor/drivers feature special rubber shock absorbers which protect the boom by isolating it from the Hydra-Pak vibrations and a cross-over check valve protects the motor.

HP135 II delivers 13,500 lbs. of impulse force and the HP210 Ft II delivers 21,00 lbs. of impulse force at 2000 cycles per minute assuring maximum lift capacity. All units are built for rugged, reliable performance with hardened steel components to resist the effects of stress, vibration, fatigue and impact forces.

Features & Benefits

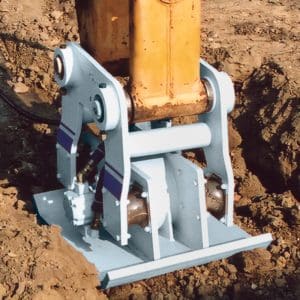

HP135 In dirt | Furukawa FRD

HP135 II

HP135 II, HP210 II Compactor Features & Benefits

  • Eliminates costly trench boxes and shoring.
  • Drives sheeting for retaining walls.
  • Rubber shocks absorb vibration protecting the carriers boom.
  • Available with O.E.M. bolt-on top cap.
  • Models 135 and 210 FB II are available with our unique floating boss design that allows O.E.M. pin spacing, eliminating costly manufacturers brackets.
Specs - HP135 II

HP135 II Specifications

 HP 135 IIHP 135 FB IIHP 135 FT II
Impulse Force lbs. (kg)13,500 (6124)13,500 (6124)13,500 (6124)
Cycles Per Minute2,0002,0002,000
Operating Pressure PSI (BAR)2,000 (138)2,000 (138)2,000 (138)
Hydraulic Flow Req'd GPM (LPM)30 (114)30 (114)30 (114)
Weight in lbs (kg)*1,335 (606)1,470 (667)1,770 (803)
Height in inches (mm)34 (864)34 (864)27 (686)
Width In. (mm)28 (711)28 (711)28 (711)
Pin Spacing In. (mm)15.75 (400)O.E.M.O.E.M.
Mounting Pin DiameterAs requiredAs requiredAs required
Base Plate Dimensions In. (mm)28 x 40 (711 x 1,016)28 x 40 (711 x 1,016)28 x 40 (711 x 1,016)
Compaction Area sq. ft. (sq. m)7.8 (.72)7.8 (.72)7.8 (.72)
HOSE SIZE IN INCHES (MM)
Pressure Line0.75 (19)0.75 (19)0.75 (19)
Return Line 1
(25)
1
(25)
1
(25)
Carrier Options















The contents of these specifications are subject to change without notice.

Notes:
* Weight does not include pins and bushings for all models or bolt-on top cap for Ft models
Specs - HP210 II

HP201 II Specifications

 HP 210 IIHP 210 FB IIHP 210 FT II
Impulse Force lbs. (kg)21,000 (9525)21,000 (9525)21,000 (9525)
Cycles Per Minute2,0002,0002,000
Operating Pressure PSI (BAR)2,000 (138)2,000 (138)2,000 (138)
Hydraulic Flow Req'd GPM (LPM)48 (182)48 (182)48 (182)
Weight in lbs (kg)*2,150 (975)2,235 (1014)2,730 (1238)
Height in inches (mm)39.5 (1003)39.5 (1003)32 (813)
Width In. (mm)34 (864)34 (864)34 (864)
Pin Spacing In. (mm)18.7 (475)O.E.M.O.E.M.
Mounting Pin DiameterAs requiredAs requiredAs required
Base Plate Dimensions In. (mm)34 x 46 (864 x 1,168)34 x 46 (864 x 1,168)34 x 46 (864 x 1,168)
Compaction Area sq. ft. (sq. m)10.8 (1.0)10.8 (1.0)10.8 (1.0)
HOSE SIZE IN INCHES (MM)
Pressure Line1 (25)1 (25)1 (25)
Return Line1.25 (32)1.25 (32)1.25 (32)
Carrier Options









The contents of these specifications are subject to change without notice.

Notes:
* Weight does not include pins and bushings for all models or bolt-on top cap for Ft models
Configurations
MODEL CONFIGURATIONS

HP135 II

HP210 II


Description of Configurations
UNV
Universal mount, direct pin-on for carriers w/out quick couplers
FB
A “Floating-Boss” mounting system for carriers requiring OEM pin centers
FT
To accommodate carriers requiring specific OEM mounting by utlizing a specific top cap
