PCR200 Pneumatic Drill – High Performance, Outstanding Versatility
An advanced boom design and hydraulic system provide outstanding versatility and high performance in all types of drilling operations.
The PCR200 assures outstanding drilling performance – whether it’s road construction, dam work, open area drilling, mining, quarrying operations or tunneling. All are performed with unsurpassed efficiency.
Pneumatic Drifter
The PD200 pneumatic drifter has a large bore (130mm) cylinder, providing a powerful drive for the rapid and reliable hammering action. A dependable and durable geared motor as well as an independent rotation device further ensure outstanding drilling performance. The drifter can withstand severe working conditions, and can also easily handle a wide range of jobs involving various kinds of rock. A variety of bits ranging in size from 64mm to 102mm are available.

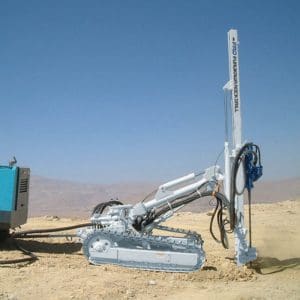

PCR200 Pneumatic Crawler Drill
PCR200 Features & Benefits
- Total muffler exhaust system enhances operator comfort.
- Boom offers easy 180-degree power dumping.
- The guide shell is hydraulically operated within a 180-degree range without inconvenient index pin change.
- The extra-long 4 ft (1200mm) guide shell slide facilitates drilling and drill-extending operations.
- Guide shell permits easier drilling with the footpad firmly pressed against the rock even on rough and irregular surfaces. It also ensures safe guide shell retraction with no danger of damage to the guide shell tip.
- Toe-hole drilling made simple.
- Changeover from vertical drilling to toe-hole drilling can be made easily without changing the pin.
- The box-type guide shell (patent pending) incorporates a third-stage of the diffusion muffling system for quiet operation.
- The firmly supported footpad and other design features provide top rigidity for the guide shell. The third muffler is incorporated along almost the entire length of the guide shell to guarantee complete muffling efficiency.
- The piston-type air motor with an output of 5HP provides an extremely high rod retracting force and ensures rapid operation. This air motor is interchangeable with the power pump motor to reduce your parts stock requirements.
PCR200 Specifications
| US Standard | Metric | |
|---|---|---|
| Weight | 11,023 lb | 5,000 kg |
| Overall length | 17'- 9" | 5,400 mm |
| Feed travel | 12' | 3,710 mm |
| Track length | 8'- 5" | 2,580 mm |
| Length of ground contact | 6'- 1" | 1,885 mm |
| Tow hitch height | 1'- 9.5" | 550 mm |
| Overall width | 7'- 9.5" | 2,390 mm |
| Track width | 7'- 3" | 2,200 mm |
| Width of grousers | 1" | 300 mm |
| Overall height ( Boom lowered) | 4'- 2" | 1,250 mm |
| Ground clearance | 11" | 280 mm |
| CRAWLER TRACTION | ||
| Ground pressure | .45 kg/cm2 | |
| Traveling speed (towing a compressor on level ground) | 1.9 mph | 3.2 km/h |
| Grade ability | 22° | |
| Oscillating angle | 15° | |
| Traction air motor (Model MR13, piston-type) | 8,8 kW | |
| GUIDE SHELL | ||
| Max. horizontal drill height | 10" | 3,050 mm |
| Guide slide travel | 3'- 11" | 1,200 mm |
| Air feed motor (Model MC2) | 4 kW | |
| Steel change | 10" | 3,050 mm |
| HYDRAULIC UNITS | ||
| Boom length | 6'- 6" | 2,000 mm |
| Boom lift ( up / down ) | 45°/25° | |
| Boom swing ( right / left ) | 45°/45° | |
| Guide swing (right / left) (95° right, 15 °left with pin change) | 50° / 50° | |
| Guide tilt (without pin change) | 180° | |
| Power pump (Model MP12) | 4 kW | |
| DRIFTER (MODEL PD200) | ||
| Weight without shank rod | 396 lb | 180kg |
| Length without shank rod | 3'- 3.5" | 1,020 mm |
| Cylinder diameter | 5.1" | 130 mm |
| Piston stroke | 3.1" | 80 mm |
| Air consumption | 565 CFM | 16 cbm |
| Blows / min | ~ 1,600 | |
| Main air hose connection | 2" | 50 mm |
The contents of these specifications are subject to change without notice.
|
Front View – Printable PDF |
 |
|
End View – Printable PDF |
 |
|
Overhead View – Printable PDF |
 |
